Automatic Lid Packing Machine PX-LD120

Name: Automatic Lid Packing Machine PXLD120
Brand: Wenzhou Beyond Machine Co., Ltd.
Price: 1 USD

Wholesale Automatic Lid Packing Machine PX-LD120 from china suppliers

Model Number : Automatic Lid Packing Machine PX-LD120

Lid Diameter : 45 – 120mm

Certification : CE Certification

Brand Name : Wenzhou Beyond Machine Co., Ltd.

Packing Material : PE,CPP,BOPP etc

Place of Origin : CHINA

Contact Now

Automatic Lid Packing Machine PX-LD120

PX-LD120 is designed for packing flat lids, dome lids, and drink-through lids, with an automatic bagging, and sealing process.

PX-LD120 uses PE, CPP, or BOPP film with a thickness of 0.03–0.04 mm, and the packing length is adjustable.

Scope of Application


Drinking Cup Lids Packing	Dome Cup Packing

Technical Specifications Of Automatic Lid Packing Machine

	PX-LD120
Packing Material	PE,CPP,BOPP etc
Packing Speed	10 – 15pcs/min
Lid Diameter	45 – 120mm
Packing Length	Customizable upon request
Thickness of Packing Film	0.03 – 0.04mm
Total Power	6kW
Air Source	0.6MPa
Dimension(L×W×H)	3×2.6×2m
Weight	800kg
Power Supply	380V, 3Ph, 50Hz

Packing Process


PLC CONTROL	FEEDING	CUP LIDS FEEDING

HEAT SEAL	PACKING	PACKING CONVEYOR

Frequently asked questions

Is diameter alone enough to confirm compatibility?

No. Review the full product profile, stack dimensions, film and feeding arrangement with actual samples.

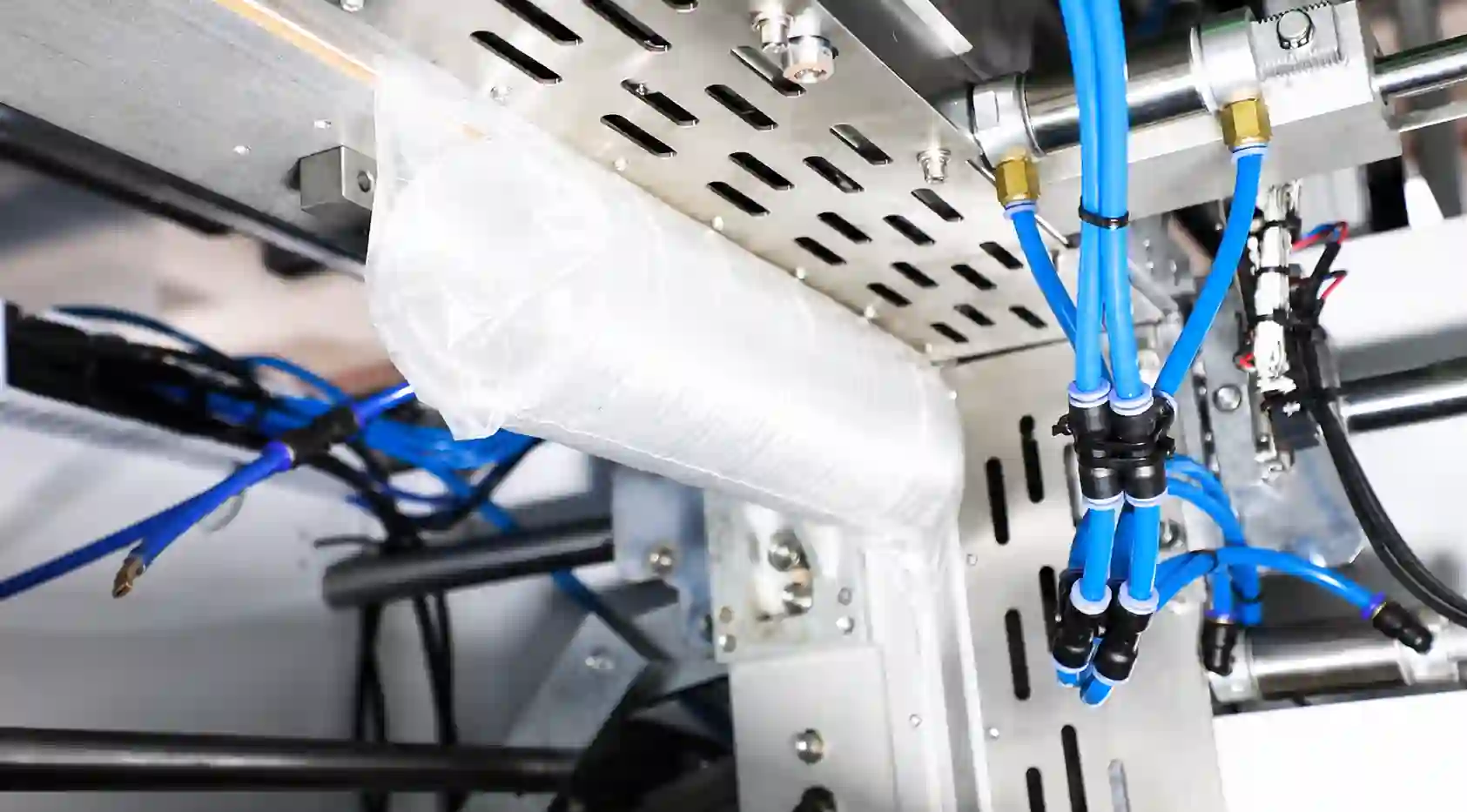

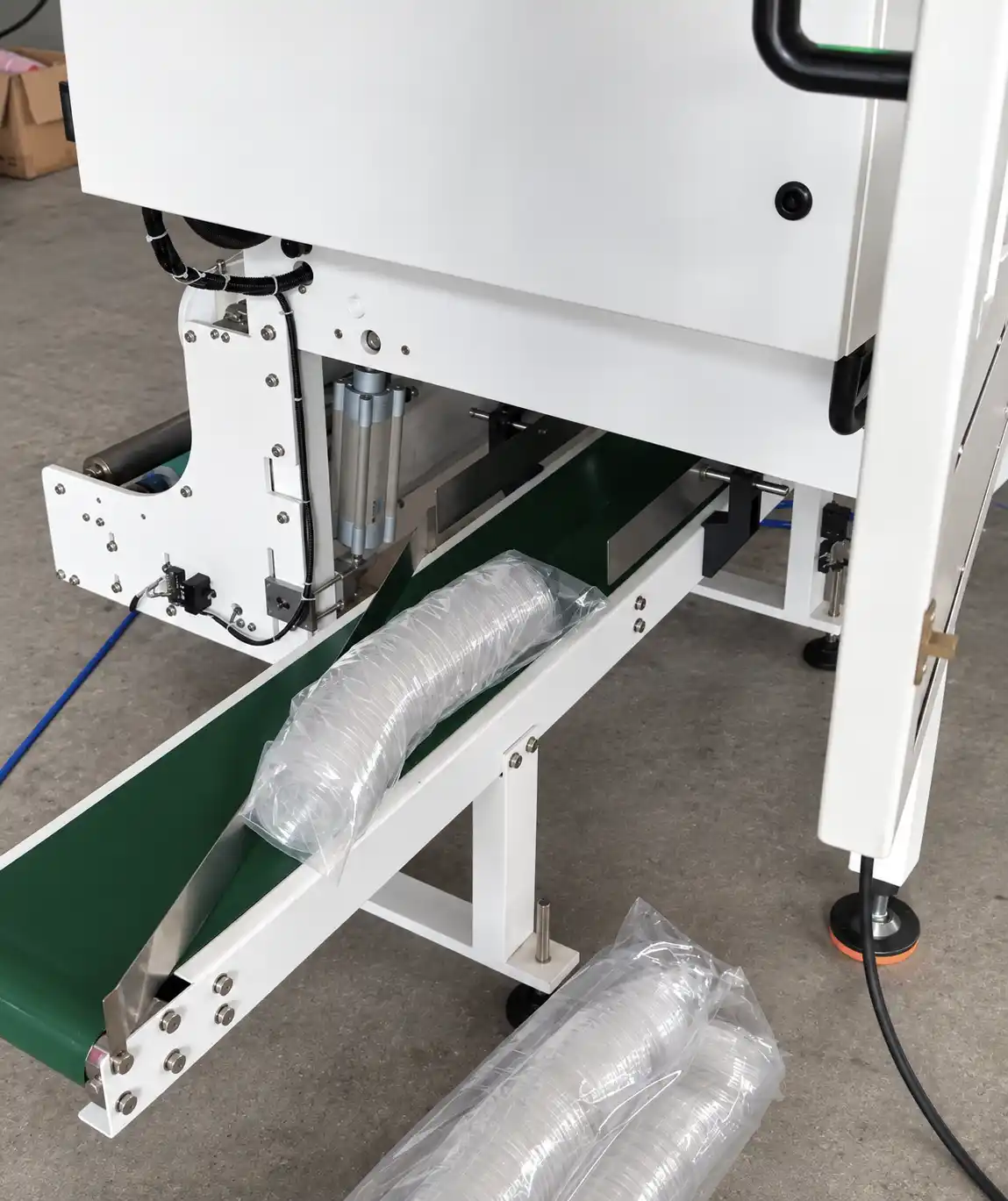

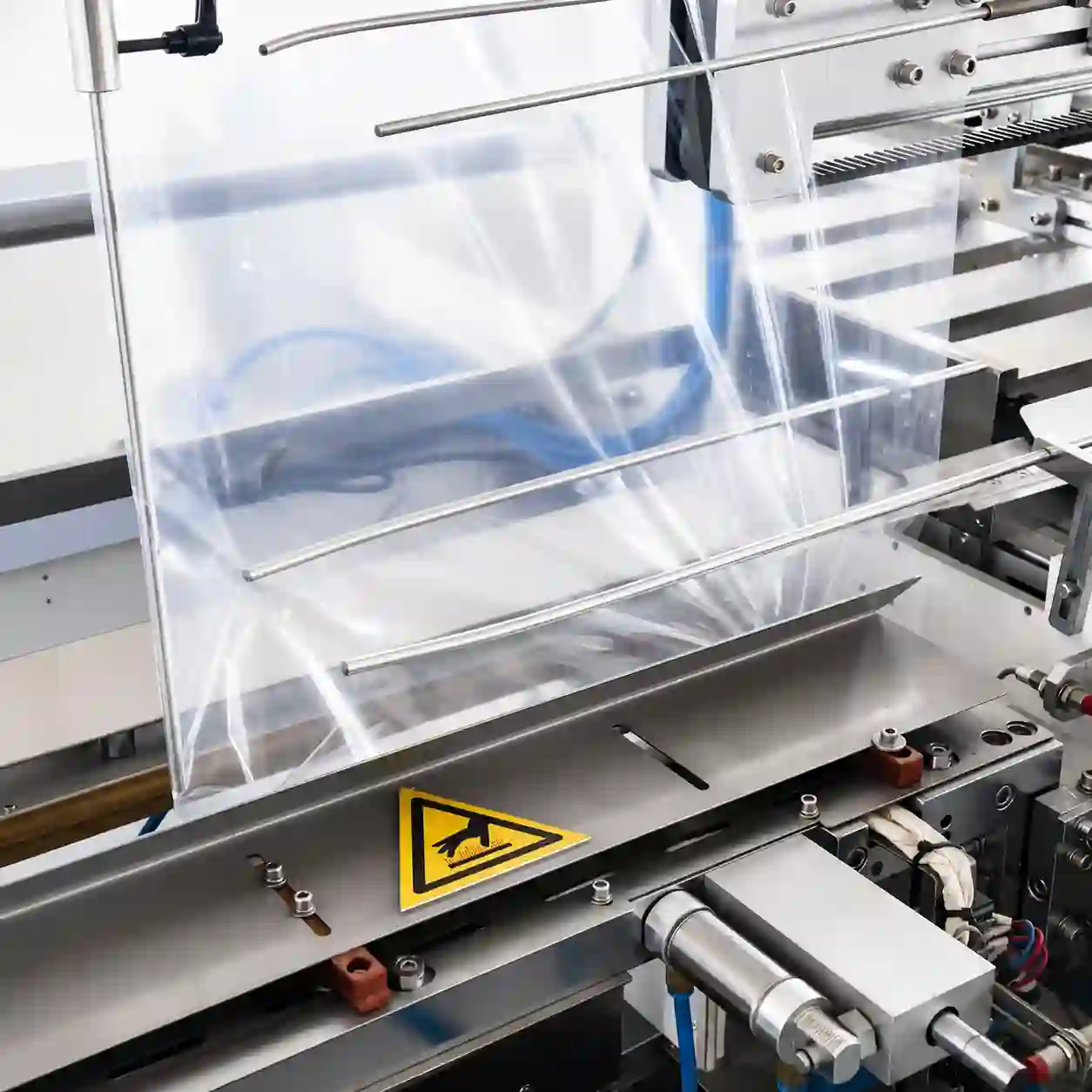

Automatic Lid Packing Machine PX-LD120 Images
